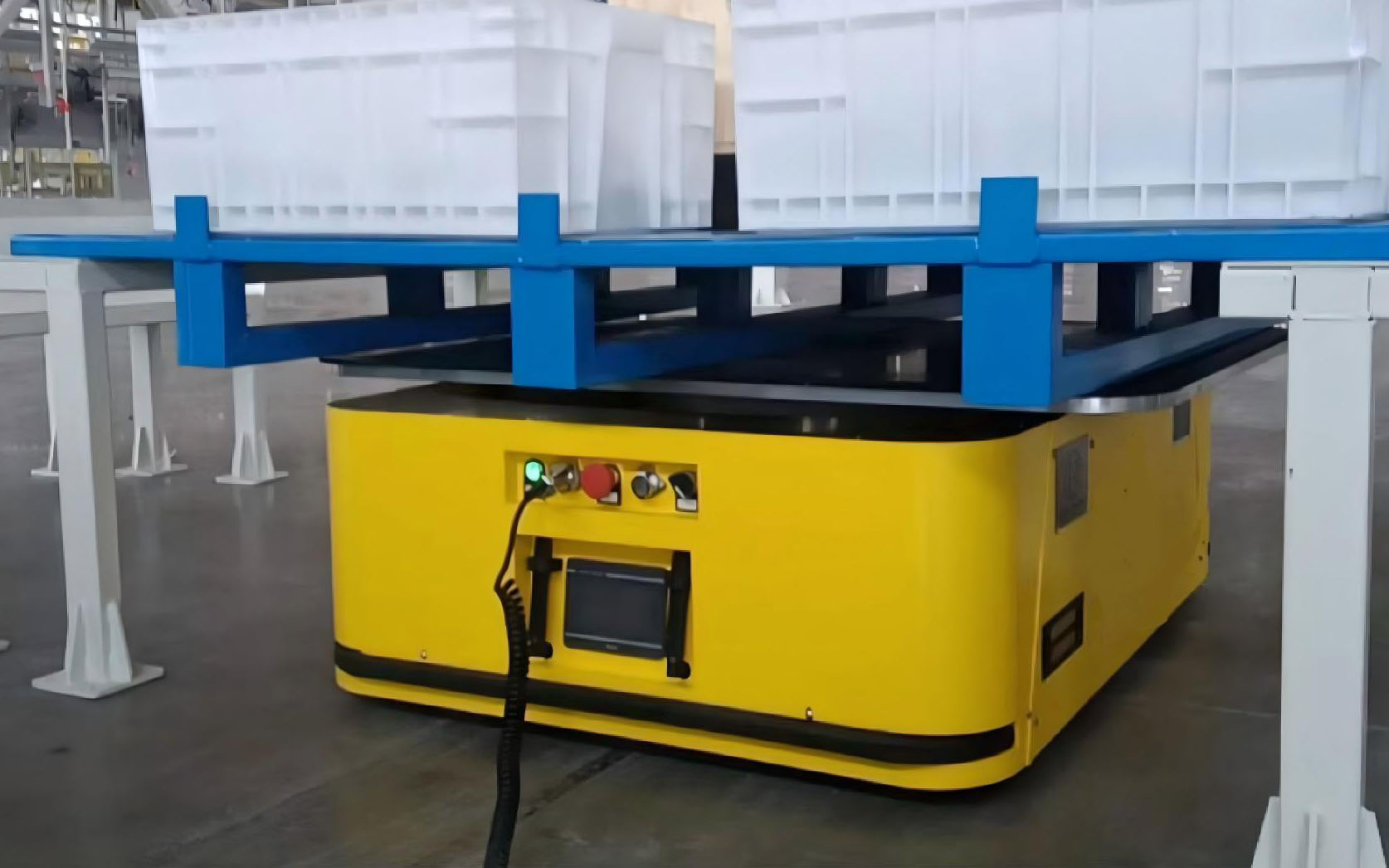

Latent AGV
LiFePO4 battery, laser or QR code navigation
| Parameter | Light Duty | Medium Duty | Heavy Duty |
|---|---|---|---|
| Rated Load | 300 kg | 600-1000 kg | 1500 kg |
| Dimensions (LxW) | 795x560 mm | 950-1090x650-810 mm | 1146x810 mm |
| Height | 285 mm | 260 mm | 275 mm |
| Lifting Stroke | 60 mm | ||
| Navigation | Laser SLAM / QR Code / Hybrid | ||
| Positioning Accuracy | +/- 5 mm to +/- 10 mm | ||
| Rated Speed | 0.8 - 2.0 m/s | ||
| Battery | LiFePO4, 48V, 1.5h fast charge | ||
| Safety | Front/Rear Laser, Touch Bumper, Audible/Visual Alarm, Emergency Stop | ||
| Applications | Warehouse picking, material transport, line-side delivery, cross-docking | ||

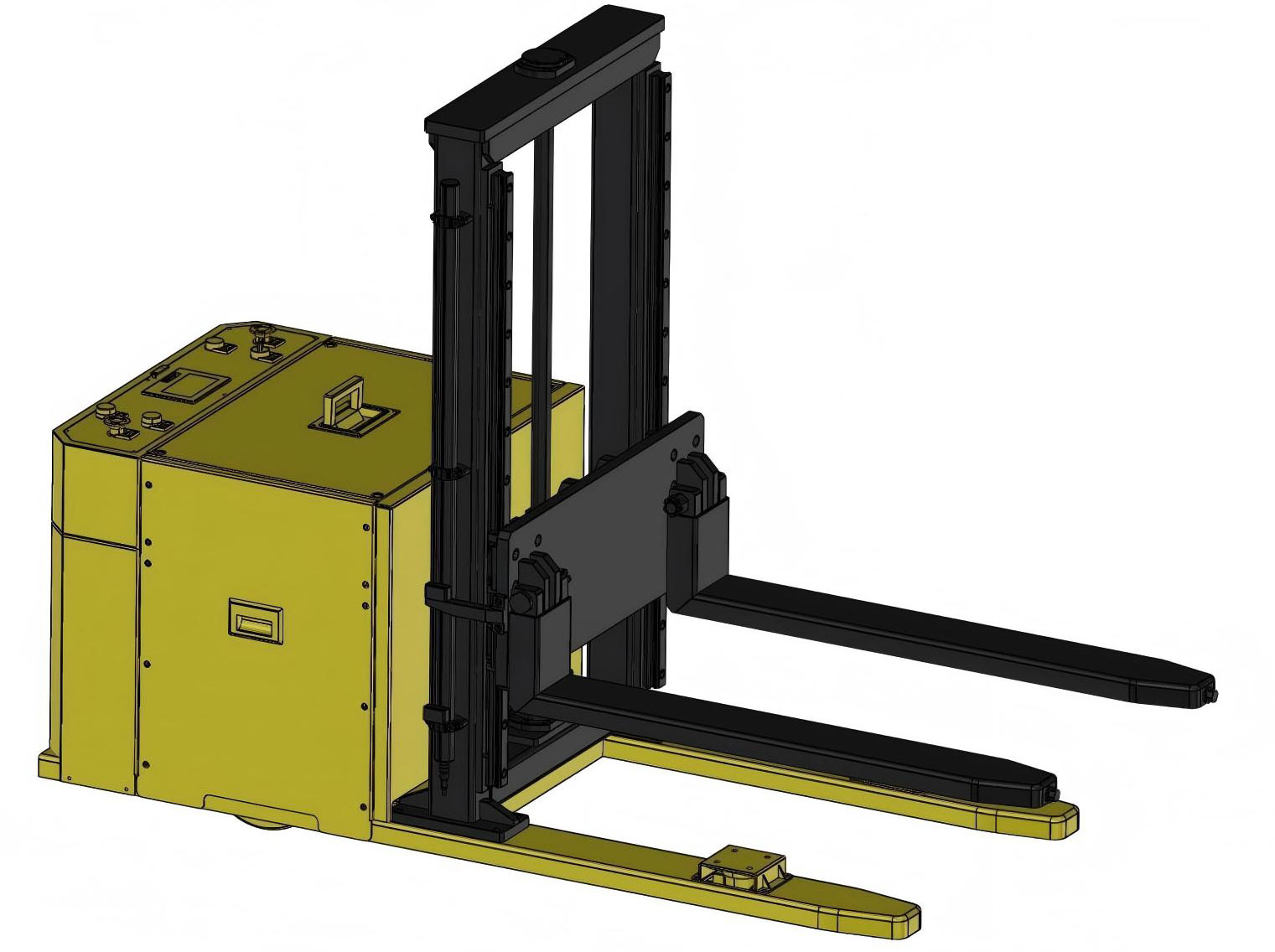

AGV Forklift Series
CE certified, suitable for warehouse and factory material handling
Pallet Truck AGV
| Parameter | Light | Medium | Heavy |
|---|---|---|---|
| Load Capacity | 1000 kg | 2000 kg | 3000 kg |
| Weight | 230 kg | 467-520 kg | 620 kg |
| Turning Radius | 979 mm | 1428-1442 mm | 1325 mm |
Stacker AGV
| Parameter | Light | Medium | Heavy |
|---|---|---|---|
| Load Capacity | 1400 kg | 2000 kg | 3000 kg |
| Lift Height | 1600 mm | 3000 mm | 2500 mm |
| Turning Radius | 1180 mm | 1440 mm | 1655 mm |
Reach Truck AGV
| Parameter | Light | Heavy |
|---|---|---|
| Load Capacity | 1400 kg | 2000 kg |
| Lift Height | 1600 mm | 3000 mm |
Counterbalance AGV
| Parameter | Value |
|---|---|
| Load Capacity | 1500 kg |
| Lift Height | 3000 mm |
Towing Tractor AGV
| Parameter | Light | Heavy |
|---|---|---|
| Tow Capacity | 3000 kg | 5000 kg |
| Weight | 765 kg | 865 kg |
